DIY Upholstered Headboard With Welt Cord Trim

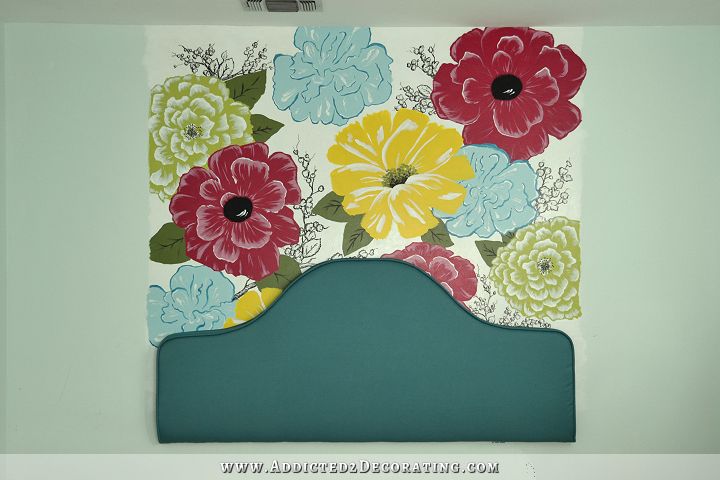

Yesterday, my mom and I finished the headboard for my niece’s bedroom makeover, and I’m very pleased with how it turned out.  I wanted something simple but pretty, in a solid fabric that wouldn’t compete with the wall mural, so we made this DIY upholstered headboard with welt cord trim around the edges.  Here’s how it turned out…

diy upholstered headboard with welt cord detail - 23

It’s 77″wide and 34″ high.  A headboard like this would normally be quite simple to make, but the fabric that we used made this project much more challenging.  My mom had a hard time finding fabric to coordinate with the room and the striped accent fabric that we had chosen.  She finally found this fabric, which was the perfect color to coordinate with the stripes, but it’s an outdoor fabric unlike any other outdoor fabric I’ve seen.

diy upholstered headboard with welt cord detail - 24

MY LATEST VIDEOS

It’s regular fabric on the front, but it’s backed with plastic on the back, which means that it has no give to it whatsoever.  It was almost like upholstering a headboard with a really thick plastic tablecloth.  You can pull it on the bias, and it doesn’t budge at all.  So working with a fabric that had zero give to it definitely made it more challenging, and we ended up with a few more puckers along the edge of the headboard than we would have had if we had been working with a regular fabric that has some give to it.

diy upholstered headboard with welt cord detail - 25

But I still think it turned out great!  And hopefully being outdoor fabric will make it easier to clean.  It is, after all, going in a bedroom for a very creative and crafty 10-year-old girl.  Anyway, I was thankful we had two sets of hands during the upholstering step, because this fabric very well might have driven me to tears had I been working alone.  🙂  So if you want to make a headboard like this, I highly recommend a regular fabric.  A medium weight cotton decorator fabric would work beautifully and be very easy to work with.

Here’s how we made this headboard…

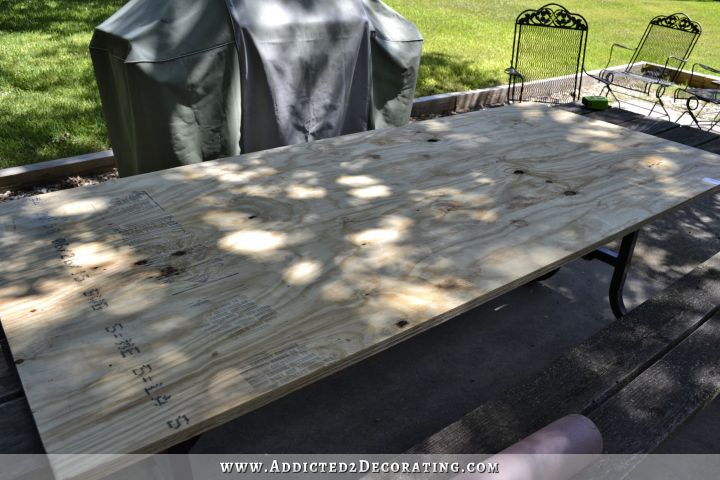

I started with a piece of 3/4″ plywood cut to the length and width that I wanted the finished headboard.  Home Depot cut the plywood for us.  Ours was cut to 77″w x 34″h.

diy upholstered headboard with welt cord detail - 1

I measured and marked the center of the plywood, and then cut a piece of paper to cover half of the headboard.  (I always have a roll of that brown or red paper from the paint section of Home Depot on hand, and it works perfectly for projects like this.)

diy upholstered headboard with welt cord detail - 2

On the paper, I drew half of my headboard shape, and then cut it out.  Then I used it as a template to draw the shape onto the plywood.

diy upholstered headboard with welt cord detail - 3

And then I flipped the paper and lined it up on the other half of the plywood, and traced the shape onto the plywood.

diy upholstered headboard with welt cord detail - 4

Doing a pattern like that — making half of a pattern and flipping it to use on both sides — ensures that the shape is exactly the same on both sides.  You’ll never, ever get it the same if you try to eyeball and freehand the design and try to get both sides perfectly the same.

And then I used my jigsaw to cut out the shape in the plywood.

diy upholstered headboard with welt cord detail - 5

With the shape cut out, I was ready to add the foam.  I used 2-inch foam for this headboard.

diy upholstered headboard with welt cord detail - 6

I adhered the foam to the plywood using a spray adhesive.  This is the only kind of spray adhesive I ever use — Loctite Professional Performance 300.  The only place I can ever find it is at JoAnn Fabric, and the reason I like this particular one is because it sprays out as a web.  When I use the ones that spray as a mist, I end up feeling sticky all over my arms and even in my hair, and I can’t stand that.  I never have that issue with the Loctite 300 that sprays as a web.

diy upholstered headboard with welt cord detail - 7

When I use that adhesive, I spray the plywood and the back of the foam, wait a couple of minutes, and then press the foam firmly to the plywood.  That creates a permanent bond.  If you just spray one or the other, it’s a temporary bond that will come apart, which can be challenging and frustrating when working on a headboard.

I had to use two pieces of foam in order to cover the whole headboard.  Using multiple pieces is fine, but I do recommend adhering the edges of the foam pieces together so that they’re as seamless as possible.  I just use the spray adhesive for that also.

Once the headboard was completely covered with foam, I used an electric knife to cut out the shape.  If you don’t have an electric knife, it’s well worth it to purchase one specifically for this project.  It’s makes foam cutting so quick and easy.  Any other kind of knife will take forever, and chew up the edges of the foam.

diy upholstered headboard with welt cord detail - 8

Then I covered the foam with a layer of high-loft polyester batting.  I used the spray adhesive for this as well, but this batting will hold just fine with only a coat of adhesive on the foam.  There’s no need to spray the back of the batting.  I also sprayed the edges, wrapped the batting around the edge of the headboard, and then cut it off along the back edge.  There’s no need to wrap the batting around to the back of the headboard.

diy upholstered headboard with welt cord detail - 9

And finally, it was time for fabric.  We brought the headboard inside and placed it on the fabric with the plywood side down, allowing a few extra inches at the bottom.  Then I used a pencil and traced around the headboard, transferring the shape onto the fabric.  The reason we placed the plywood side down is so that I would have the hard, definite edge to trace around.  Tracing around the foam/batting side would have resulted in a not-very-precise outline.

diy upholstered headboard with welt cord detail - 10

While I was working on the headboard outside, my mom was making covering welt cord in the headboard fabric.  She made a total of 24 feet of covered welt cord for the headboard.  (If you want a tip for making continuous bias for welt cord, see my tutorial here.  We actually did not do bias strips for the cord on this headboard since the plastic backing on the fabric didn’t allow for any give on the bias, and it wouldn’t have made any difference.)

When the welt cord was finished, I measured the lip on the welt cord…

diy upholstered headboard with welt cord detail - 11

…and then transferred that measurement to the outline of the headboard on the fabric.

diy upholstered headboard with welt cord detail - 12

Marking to the outside of the traced headboard line, we measured and marked a new line all the way around the traced headboard line.  I used this new line as the cut line to cut out the fabric, and this extra amount provided enough fabric for a seam allowance.

diy upholstered headboard with welt cord detail - 13

With the headboard face fabric cut out, I pinned the welt cord along the edge of the fabric along the top and sides.  I pinned this to the face (i.e., the front, or the top) of the fabric.  I had to make several relief cuts in the welt cord lip so that the fabric would bend around the curves.

diy upholstered headboard with welt cord detail - 14

And then using a zipper foot on the sewing machine, I sewed the welt cord to the fabric.

diy upholstered headboard with welt cord detail - 15

Next I cut out a long stripe of fabric that was 5.5-inches wide, and long enough to go around the sides and top of the headboard…

diy upholstered headboard with welt cord detail - 16

…and I pinned that to the fabric, with the welt cord sandwiched in between.

diy upholstered headboard with welt cord detail - 17

Still using the zipper foot, I sewed all of those layers together around the sides and top of the headboard fabric.  (No need to put welt cord along the bottom.)

diy upholstered headboard with welt cord detail - 18

Then we were ready to attach the fabric to the headboard.  We carefully lined up the fabric so that the welt cord lined up with the edges all the way around the headboard.  Then while my mom held the fabric in place along the edges (making sure I didn’t pull it too tightly), I wrapped the edge fabric around to the back and stapled it in place.  I had to make several relief cuts in this as well to make it around the curves.  And again, this particular fabric puckered.  Most fabric will have at least a little bit of give to it, so you can pull out those puckers before stapling the fabric in place.

diy upholstered headboard with welt cord detail - 19

We stapled the fabric along the edges and the top first, making sure that the welt cord lined up perfectly around the edges.  And then we flipped the headboard over, pulled the fabric along the bottom as tightly as possible, pulling out any wrinkles or puckers on the front of the headboard, and wrapped that fabric around to the back and stapled in place.

And finally, we added one more row of welt cord along the back edge.  There was no need to sew this welt cord to the fabric.  It’s much easier to staple it in place afterwards.

diy upholstered headboard with welt cord detail - 20

And that’s it!  The only thing left to do was attach the Ook Hangman hardware.  This French cleat hardware is the only way I ever hang headboards.  One piece goes on the back of the headboard…

diy upholstered headboard with welt cord detail - 21

…and the other piece, which comes with a nifty little level, goes on the wall.

diy upholstered headboard with welt cord detail - 22

The best thing about Ook Hangman hardware is that they come with Walldog screws and don’t need to be hung on a stud.  No stud finder necessary.  You just screw them right into the drywall, and they hold just perfectly.

And voila!  There she is!

diy upholstered headboard with welt cord detail - 26

Now on to the built-ins.  🙂

And FYI…in case you’re wondering why we made the headboard first, it’s because I wanted to know exactly how thick the finished headboard would be before cutting out plywood for the bed.  The bed and shelves will all be built in, and I didn’t want to take the chance of making the bed the wrong depth (i.e., not allowing enough depth for the upholstered headboard).  Now, with the headboard finished and in place, there will be no guesswork.  I know exactly how much allowance is needed for the headboard.
